Short Range Wireless and Wired Indicators
All of Our Cigarette Smoke Detectors can be equipped to trigger a horn, strobe, or horn/strobe indicator.  In a wireless system, the indicator is placed outside the area monitored by the cigarette smoke detector.  In a wired system, it can be up to 5000' away.


Remote Horn

Pair a Horn Indicator shown on the left with any of our smoking detectors to inform personnel nearby when smoking starts!

Wireless Horn can be mounted up to 50' from detector. Use with detector model xx30. Simply mount and plug in to install. Wired Horn can be mounted up to 5000' from detector. Use with detector model xx40. Run wires between units to install.

  • Horn unit shown is mounted on a 4.5" x 4.5" plastic box (not shown) which houses the receiver unit.
  • 15 Watt power rating.
  • Rust free housing
  • 800/1200 HZ Warble Sound 80 - 90 dB at 10'
  • Supplied with 110V/60Hz to 12 vdc power supply.

Remote Strobe

Pair a Strobe Indicator shown on the left with any of our smoking detectors to inform personnel nearby when smoking starts!

Wireless Strobe can be mounted up to 50' from detector. Use with detector model xx30. Simply mount and plug in to install.  Wired Strobe can be mounted up to 5000' from detector.  Use with detector model xx40. Run wires between units to install.

  • Ideally suited for a quiet office environment or perhaps a nurses station in a convalescent facility or nursing home.
  • Strobe unit is mounted on a 4.5" x 4.5" plastic box (not shown) which houses the receiver unit.
  • Rust free housing
  • 60,000 Candle Power Strobe
  • Supplied with 110V/60Hz to 12 vdc power supply.

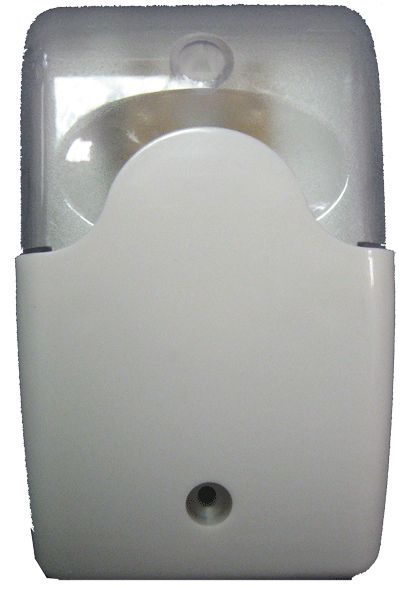

Remote Horn/Strobe

Pair a Horn/Strobe Indicator shown on the left with any of our smoking detectors to inform personnel nearby when smoking starts!

Wireless Horn/Strobe can be mounted up to 50' from detector. Use with detector model xx30. Simply mount and plug in to install.  Wired Horn/Strobe can be mounted up to 1000' from detector.  Use with detector model xx40. Run wires between units to install.

  • Piercing 104 dB sound output
  • Can be heard over heavy machinery
  • Sounds/flashes for either 4 or 25 seconds, then resets
  • Includes 110V/60Hz to 6-14 VDC power supply
  • Tamper resistant





Low Volume Bell and/or Strobe

The Low Volume Bell/Strobe Indicator shown on the left can be paired with any of our smoking detectors to inform personnel nearby when smoking starts!  It is ideal for nursing homes and other locations where higher volumes are inappropriate.

Wireless Horn/Strobe can be mounted up to 50' from detector. Use with detector model xx30. Simply plug in to outlet.  No mounting required.  Not available for wired systems.

  • 65bD Doorbell sound
  • Rust free housing
  • Supplied with 110V/60Hz to 12 vdc power supply.
